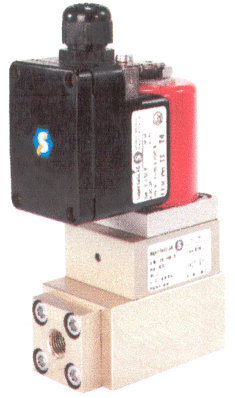

Media |
Natural gas |
Function |
2/2-Way,Normaly closed(NC) |
Pressure-Range |
10…350 bar |
145…5075 psi |
Test pressure |
525 bar |
7'615 psi |
Burst pressure |
1'400 bar |
20'305 psi |
Operating temperatures |
-30°…+80℃ |
-22°…+176°F |
Flow rate |
Kv=150110NI/min |
m3/h29-37'000 |
Seals |
EcopurTM，FKM |
Standard material |
Aluminium hard anodised |
Mounting position |
Any(4 threaded holes below) |
|
| |
Oriflce size |
Connections |

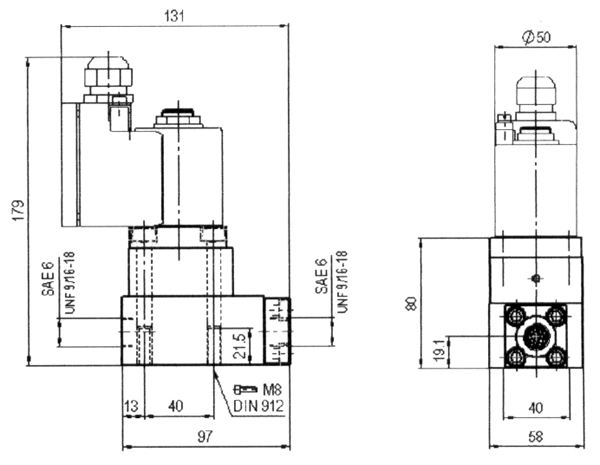

Dimension(mm) |
Check Valve |
Part.No. |
6mm |
G 3/8 |
58×97×179 |
yes |
143.915.00 |
6mm |
G 3/8 |
58×75×179 |
no |
144.335.00 |
6mm |
SAE 6 |
58×97×179 |
yes |
143.930.00 |
6mm |
SAE 6 |
58×75×179 |
no |
144.336.00 |
12mm |
G 3/4 |
74×126.5×200 |
yes |
151.422.00 |
12mm |
G 3/4 |
74×90×200 |
no |
151.421.00 |
12mm |
SAE 8 |
74×126.5×200 |
yes |
151.424.00 |
12mm |
SAE 8 |
74×90×200 |
no |
151.423.00 |
18mm |
G1 |
85×156×226 |
yes |
151.449.00 |
18mm |
G1 |
85×110×226 |
no |
151.448.00 |
18mm |
SAE 12 |
85×156×226 |
yes |
151.451.00 |
18mm |
SAE 12 |
85×110×226 |
no |
151.450.00 |
|
| |
|
| |
|
| |
Type |
Voltage |
Power |
AC/DC |
Frequency |
Security |
Part.No. |
2C52W |
230V |
14W |
AC |
50…60Hz |
Eex d IIC T4 |
118.196.230M55 |
2C52W |
115V |
14W |
AC |
50…60Hz |
Eex d IIC T4 |
118.196.115M55 |
2A52W |
24V |
17W |
DC |
50…60Hz |
Eex d IIC T4 |
118.195.024L |
2A52W |
12V |
17W |
DC |
50…60Hz |
Eex d IIC T4 |
118.195.012L |
|
| |
The part.no.of valves do not contain the solenoid
Other types on request |
| |
